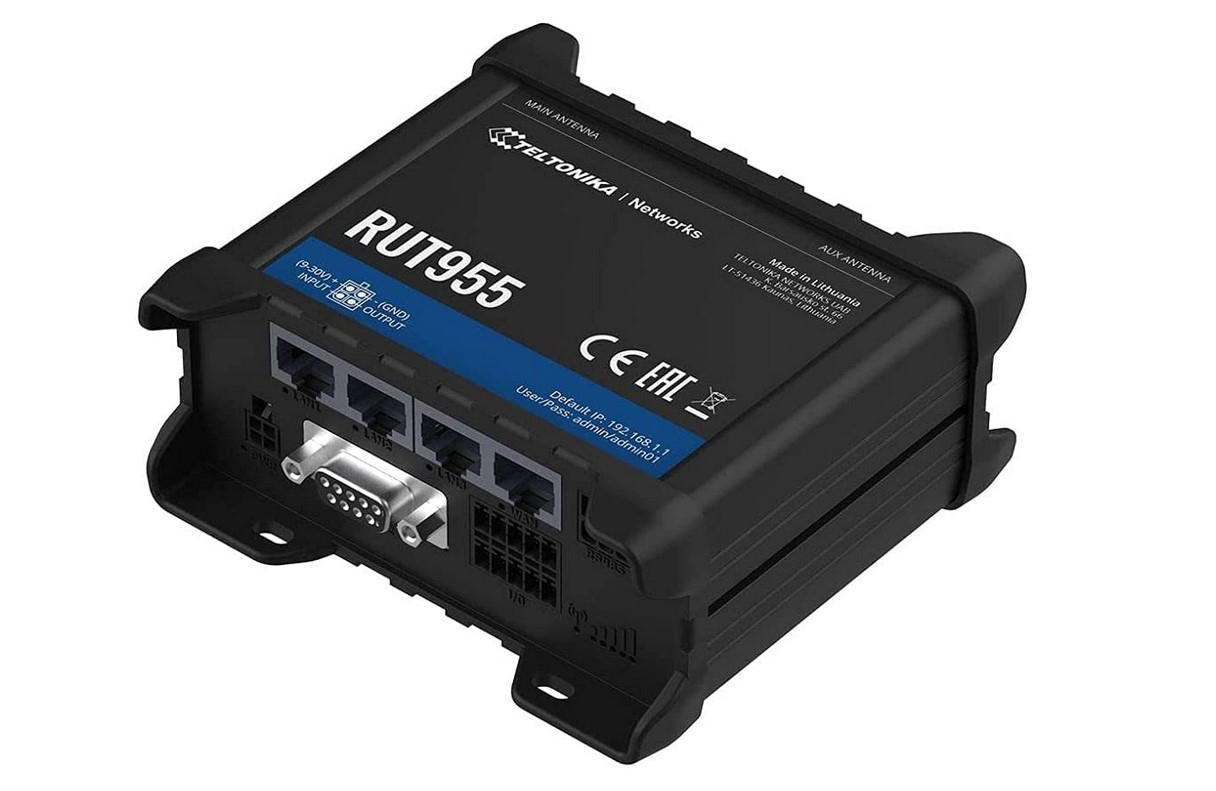

Teltonika RUT955 Industrial LTE WiFi GPS Router

Ocenite proizvod

27.090,00

RUT955 je visoko pouzdan i siguran LTE ruter za profesionalne aplikacije. Ruter pruža visoke performanse, mobilnu komunikaciju i mogućnosti GPS lokacije. RUT955 je opremljen redundantnošću povezivanja kroz dual SIM failover. Spoljašnji antenski konektori omogućavaju priključivanje željenih antena i lako pronalaženje najbolje lokacije signala.

SKU: RUT955T033B0

Sampro ID: 56039

Dostupnost: Pozovite za informaciju

Količina:

Fajlovi za preuzimanje

Teltonika RUT955 Industrial LTE WiFi GPS Router

Specifikacije

Specifikacije proizvoda

Interfejs	4 x RJ45 ports, 10/100 Mbps 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) 2 x SMA for LTE 2 x RP-SMA for WiFi 1 x SMA for GNSS 1 x USB A port for external devices 1 x DB9 socket
Procesor	MIPS 74Kc
Radni takt procesora	550 MHz
Operativni sistem	RutOS (OpenWrt based Linux OS)
Memorija	RAM - 128MB, DDR2 FLASH - 16MB, SPI Flash
Frekvencija	4G (LTE-FDD): B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz) 4G (LTE-TDD): B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz) 3G: B1 (2100 MHz), B8 (900 MHz) 2G: B3 (1800 MHz), B8 (900 MHz)
Izmenjiva antena	Da
Broj antena	5
Vrsta LAN Portova (Mbit)	100
Broj LAN Portova	4
Vrsta USB porta	2.0
SIM slot	SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
SIM standard	2G / 3G / 4G
PoE In	Passive PoE over spare pairs. Not compatible with IEEE802.3af, 802.3at and 802.3bt.
Napajanje	9 – 30 VDC
Dimenzije	100 mm x 110 mm x 50 mm
Težina	287 g
Radna temperatura	-40 °C to 75 °C
Dodaci	1 x 9 W PSU 2 x LTE ANTENNAS (MAGNETIC MOUNT, SMA MALE, 3 M CABLE) 2 x WIFI ANTENNAS (MAGNETIC MOUNT, RP-SMA MALE, 1.5 M CABLE) 1 x GNSS ANTENNA (ADHESIVE , SMA MALE, 3 M CABLE) 1 x RS485 CONNECTOR BLOCK 1 x I/O CONNECTOR BLOCK 1 x ETHERNET CABLE (1.5 M) 1 x SIM ADAPTER KIT
Link	Stranica proizvođača
EAN	4779027311302
