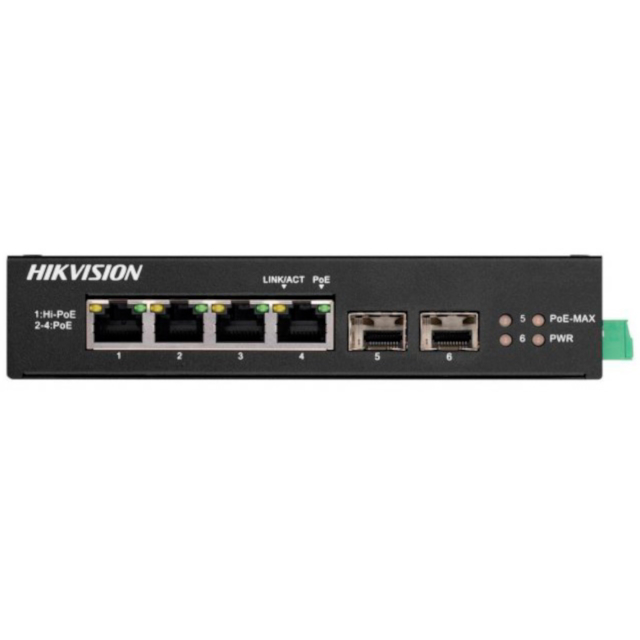

HIKVISION 6-port Industrial switch 3xGb PoE 1xHiPoE 2xGb SFP DS-3T0506HP-E/HS

Ocenite proizvod

15.119,81

Broj portova (Uplink):
2 × gigabit SFP Fiber Optical Port
Broj portova (Downstream):
3 × gibabit PoE ports (30W), domet portova 3 i 4 do 300m
1 × Hi-PoE port (60W)

SKU: DS-3T0506HP-E/HS

Sampro ID: 60816

Dostupnost: Pozovite za informaciju

Količina:

Fajlovi za preuzimanje

DS-3T0506HP-E/HS

Specifikacije proizvoda

Interfejs	Broj portova (Uplink): 2 × gigabit SFP Fiber Optical Port Broj portova (Downstream): 3 × gibabit PoE ports (30W), domet portova 3 i 4 do 300m 1 × Hi-PoE port (60W)
LED	Ethernet Ports (1, 2, 3, ...), Power
Upravljivost	Ne
Layer	/
Vrsta LAN Portova (Mbit)	1000
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at
Broj LAN Portova	4
Broj SFP Portova	2
Broj SFP+ Portova	/
Broj Combo Portova	/
Access Method	/
Brzina prenosa podataka	10/100/1000
Osobine	● MAC address table: 4 K ● Propusnost: 8.928 Mpps ● Memorijski buffer: 1.5 Mbits ● PoE power budget: 60W ● Switching kapacitet: 12 Gbps ● Režimi rada: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode ● Zaštita od groma: 6 KV za PoE portove ● Težina: 0.38 kg
Radna temperatura	-30 °C to 65 °C
Napajanje	48~57V DC
Dimenzije	158 × 101.2 × 31.6 mm
EAN	6941264038351
Link	Stranica proizvođača

4 Port Gigabit Unmanaged Harsh POE Switch

3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
PoE watchdog to auto detect and restart the cameras that do not respond.
Port isolation to improve network security.
Wire-speed forwarding.
Wider temperature (-30 to 65 °C) design.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.
