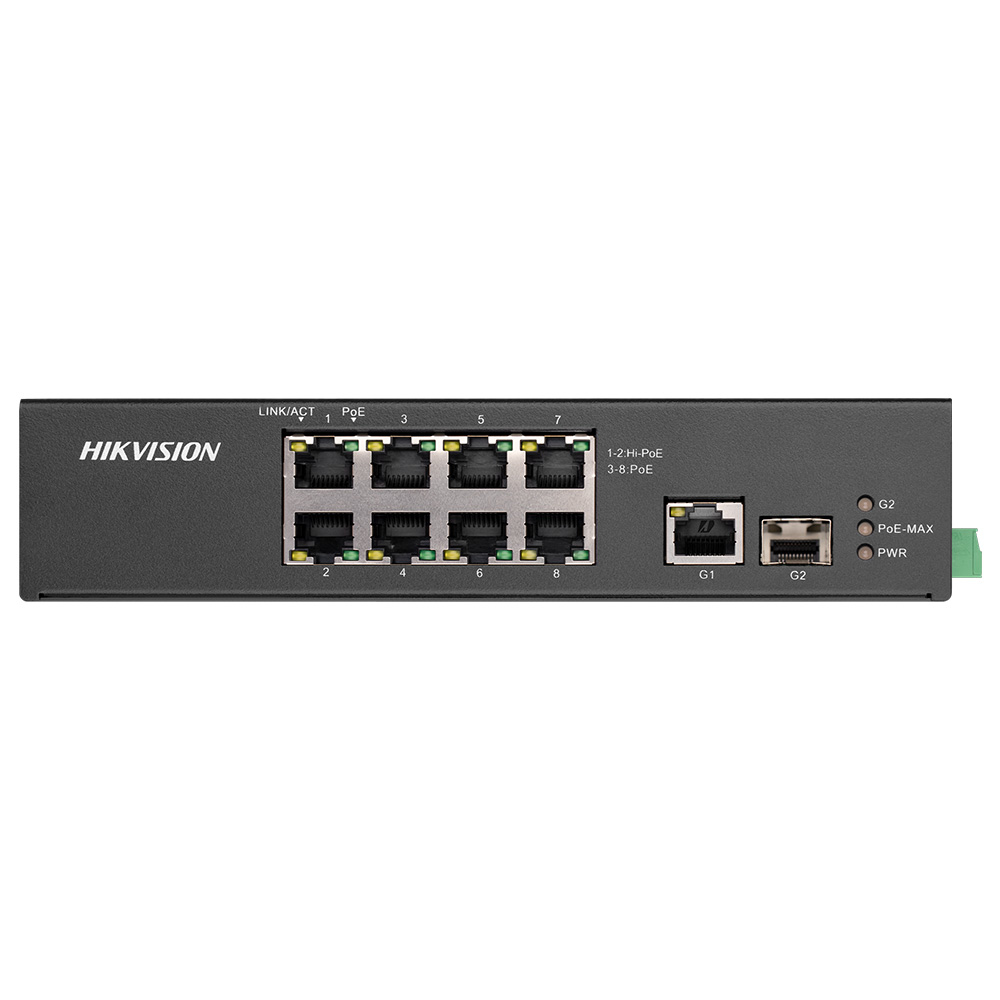

HIKVISION 10-port Industrial switch 6x100M PoE 2xHiPoE 1xGb 1xGb SFP DS-3T0310HP-E/HS

Ocenite proizvod

16.127,80

Broj portova (Uplink):
1 × gigabit RJ45 port
1 × gigabit SFP Fiber Optical Port
Broj portova (Downstream):
6 × 100M PoE ports (30W), domet portova 7 i 8 do 300m
2 × Hi-PoE port (90W)

SKU: DS-3T0310HP-E/HS

Sampro ID: 60815

Dostupnost: Pozovite za informaciju

Količina:

Fajlovi za preuzimanje

DS-3T0310HP-E/HS

Specifikacije proizvoda

Interfejs	Broj portova (Uplink): 1 × gigabit RJ45 port 1 × gigabit SFP Fiber Optical Port Broj portova (Downstream): 6 × 100M PoE ports (30W), domet portova 7 i 8 do 300m 2 × Hi-PoE port (90W)
LED	Ethernet Ports (1, 2, 3, ...), Power
Upravljivost	Ne
Layer	/
Vrsta LAN Portova (Mbit)	100
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3atu
Broj LAN Portova	8
Broj SFP Portova	1
Broj SFP+ Portova	/
Broj Combo Portova	/
Access Method	/
Brzina prenosa podataka	10/100
Osobine	● MAC address table: 2 K ● Propusnost: 4.1664 Mpps ● Memorijski buffer: 1Mbit ● PoE power budget: 110W ● Switching kapacitet: 5.6 Gbps ● Režimi rada: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode ● Zaštita od groma: 6 KV za PoE portove ● Težina: 0,565kg
Radna temperatura	-30 °C to 65 °C
Napajanje	48~57V DC
Dimenzije	197 × 114.2 × 42.2 mm
EAN	6941264038368
Link	Stranica proizvođača

8 Port Fast Ethernet Unmanaged Harsh POE Switch

6 × 100M PoE ports, 2 × Hi-PoE port, 1 × gigabit RJ45 port and 1 × gigabit SFP fiber optical port.
IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
PoE output power management.
Up to 300 m long-range transmission.
PoE watchdog to auto detect and restart the cameras that do not respond.
Port isolation to improve network security.
Wider temperature (-30 to 65 °C) access design.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

Specifikacije proizvoda

Interfejs	Broj portova (Uplink): 1 × gigabit RJ45 port 1 × gigabit SFP Fiber Optical Port Broj portova (Downstream): 6 × 100M PoE ports (30W), domet portova 7 i 8 do 300m 2 × Hi-PoE port (90W)
LED	Ethernet Ports (1, 2, 3, ...), Power
Upravljivost	Ne
Layer	/
Vrsta LAN Portova (Mbit)	100
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3atu
Broj LAN Portova	8
Broj SFP Portova	1
Broj SFP+ Portova	/
Broj Combo Portova	/
Access Method	/
Brzina prenosa podataka	10/100
Osobine	● MAC address table: 2 K ● Propusnost: 4.1664 Mpps ● Memorijski buffer: 1Mbit ● PoE power budget: 110W ● Switching kapacitet: 5.6 Gbps ● Režimi rada: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode ● Zaštita od groma: 6 KV za PoE portove ● Težina: 0,565kg
Radna temperatura	-30 °C to 65 °C
Napajanje	48~57V DC
Dimenzije	197 × 114.2 × 42.2 mm
EAN	6941264038368
Link	Stranica proizvođača
